Industrial Expansion Joints & Flexible Piping Solutions
Engineered rubber expansion joints, dismantling joints, metal expansion joints and flexible metal hoses for water, HVAC, industrial and infrastructure piping systems.
Engineering & Manufacturing for Industrial Piping Systems
Henan Mingchao Fluid Technology Co., Ltd. provides engineered pipeline connection and compensation products for water, HVAC, industrial and infrastructure piping systems. Our product range includes rubber expansion joints, dismantling and telescopic joints, metal expansion joints, flexible metal hoses and related pipeline components. Products can be supplied to different flange standards, dimensions and project requirements.

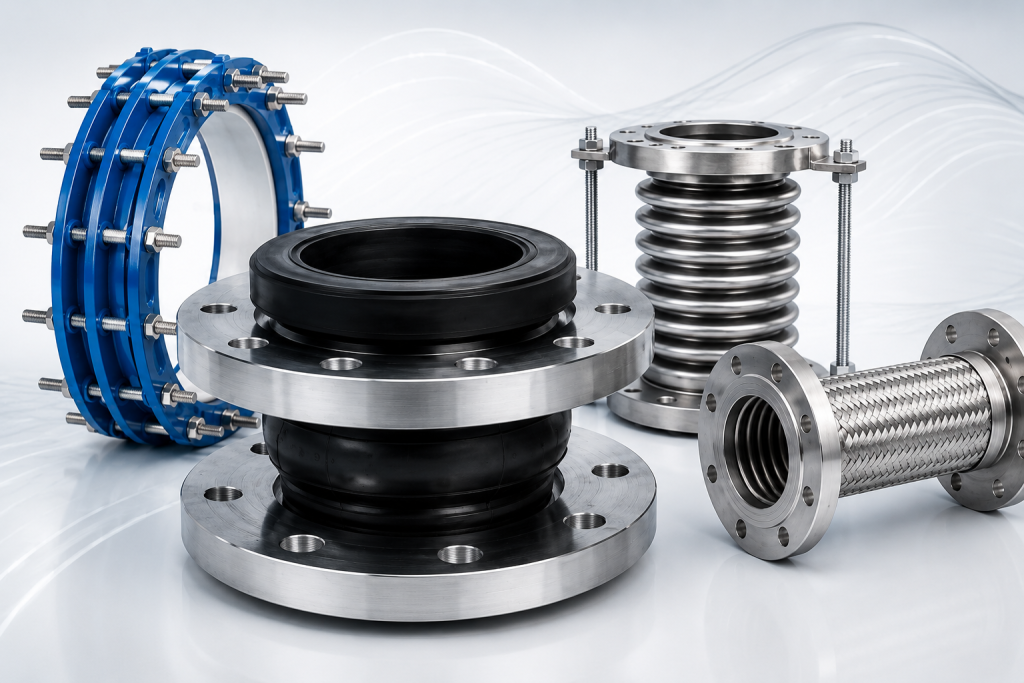

Rubber joints, dismantling joints, metal bellows & flexible metal hoses.

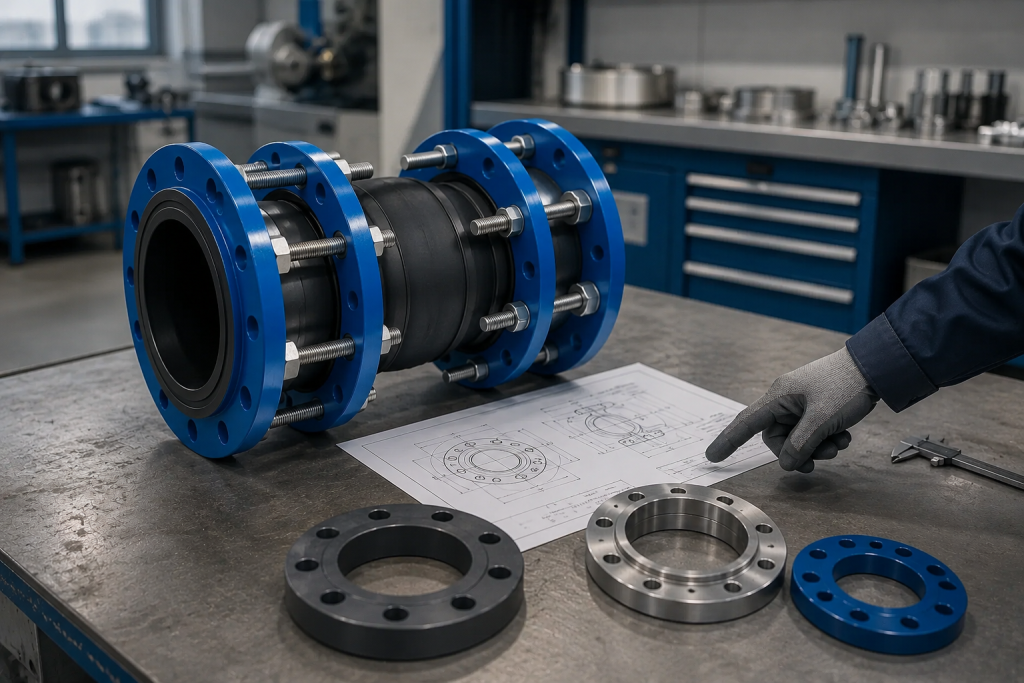

Flange standards, dimensions, materials & configurations to project requirements.

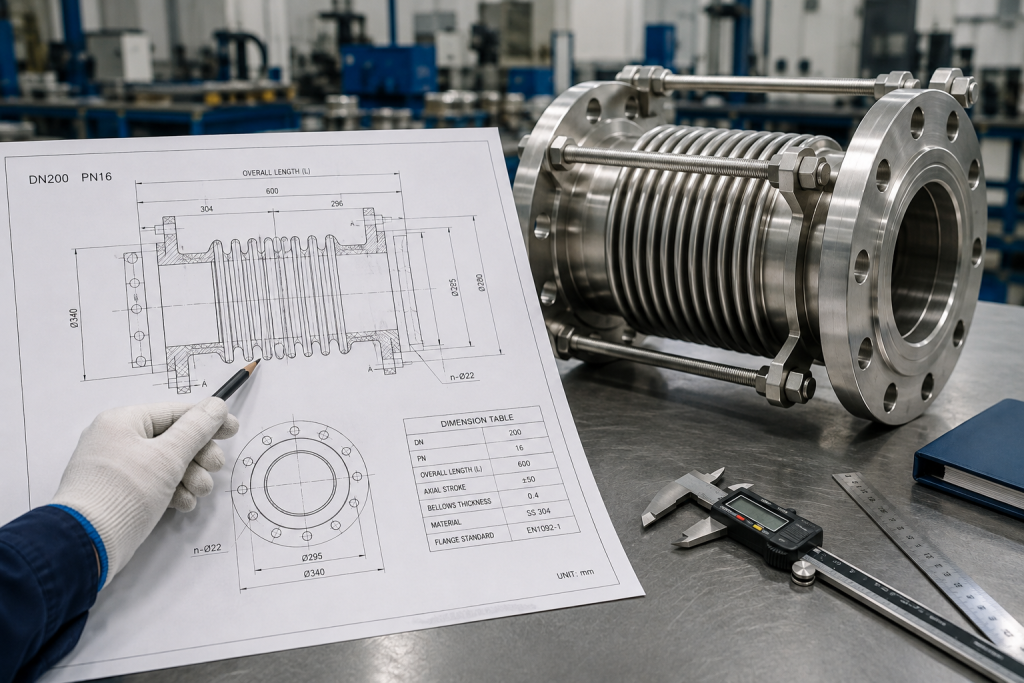

Manufactured to customer drawings, dimensions & project specifications.
Selection support based on size, pressure, temperature, medium & movement.
Solutions
Engineering solutions for vibration, thermal movement, installation and flexible equipment connections in industrial piping systems.
Rubber Expansion Joints for Pump Vibration Control Rubb […]
Metal Bellows Expansion Joints for Thermal Movement Met […]
Flexible metal hoses accommodate vibration, movement an […]
Industry Solutions
Pipeline connection and movement solutions for water, HVAC, industrial and chemical processing systems.

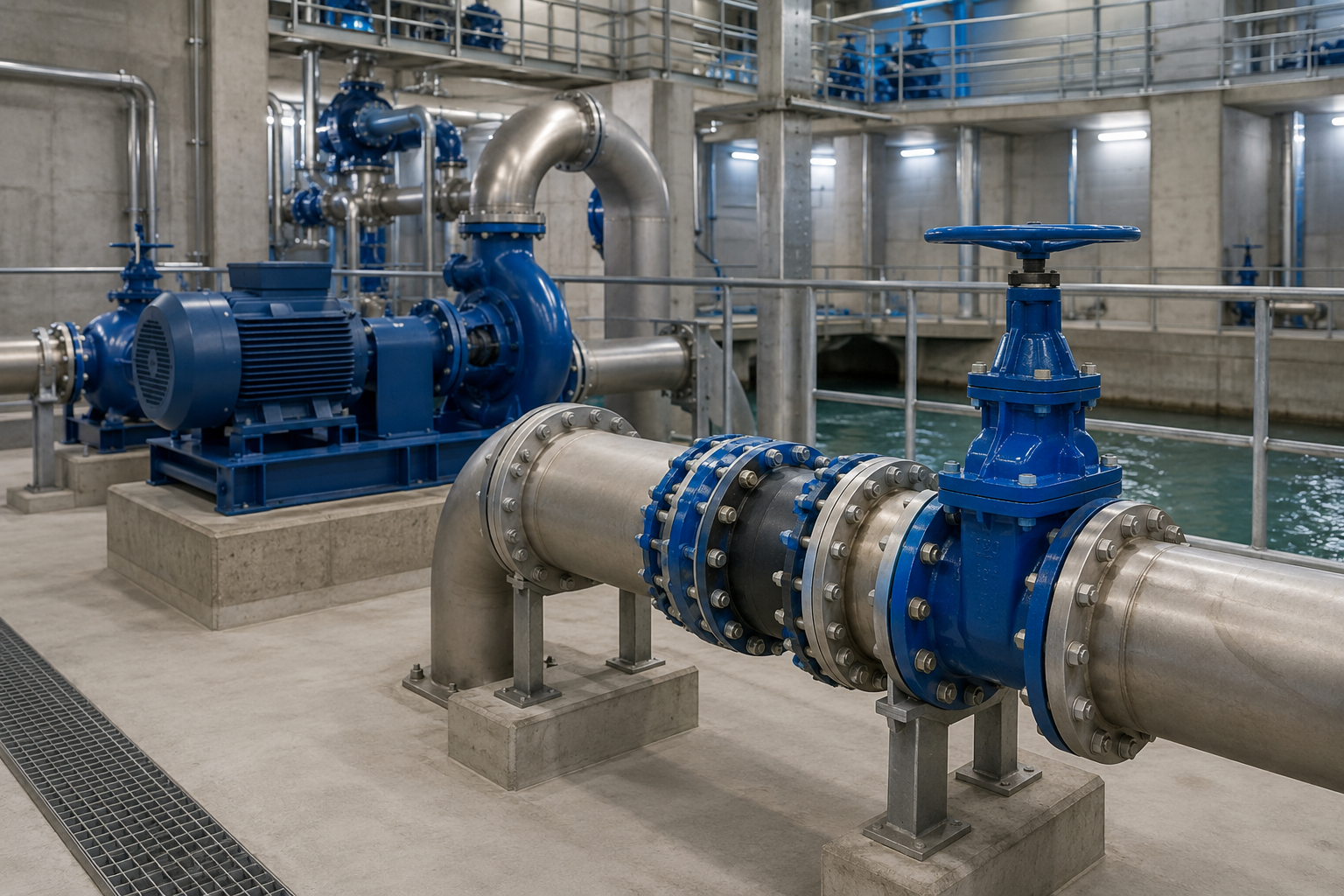

Rubber expansion joints, dismantling joints and check valves for water treatment, pump stations, wastewater and water distribution systems.

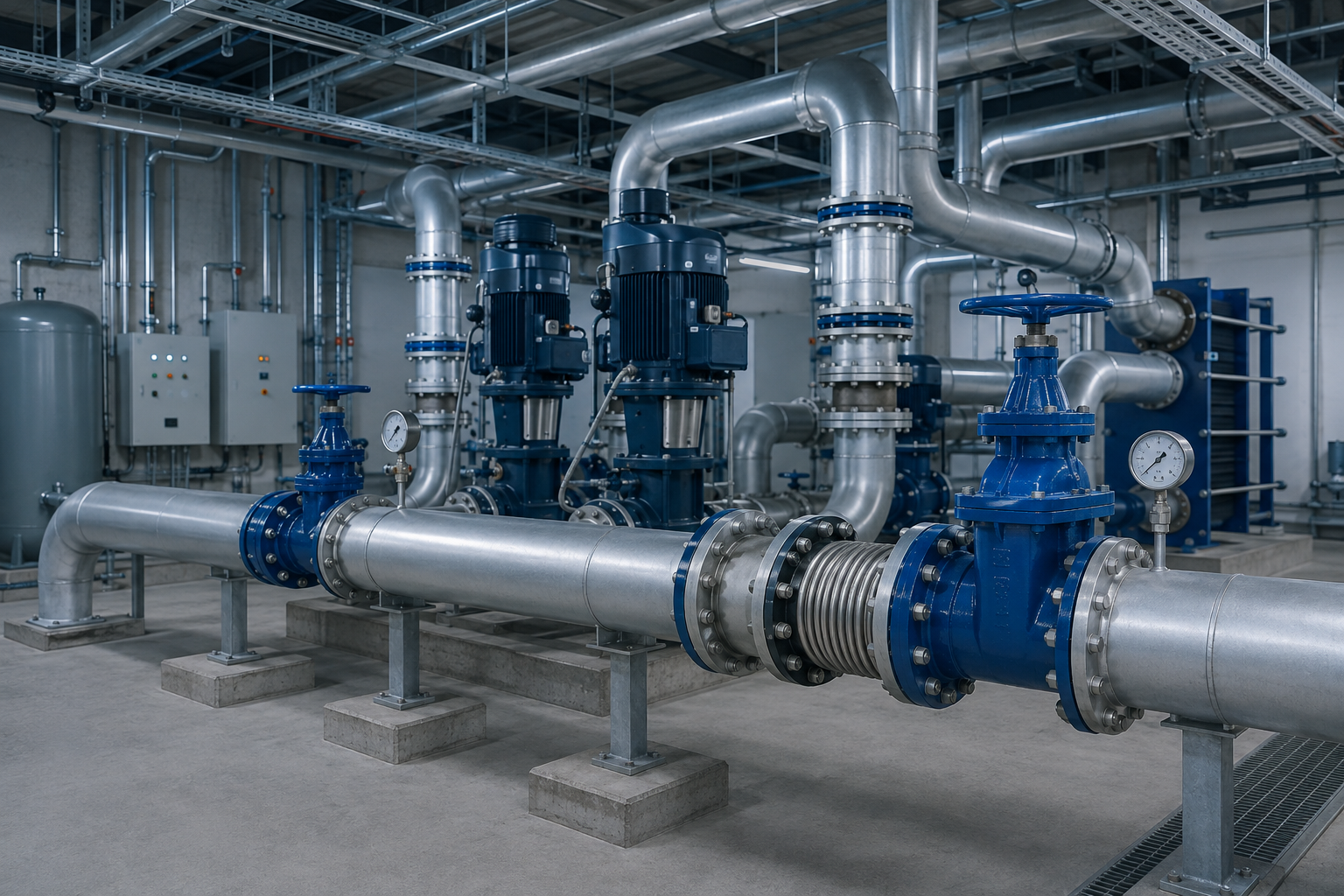

Expansion joints and flexible connections for chilled-water systems, pump rooms and district cooling networks.

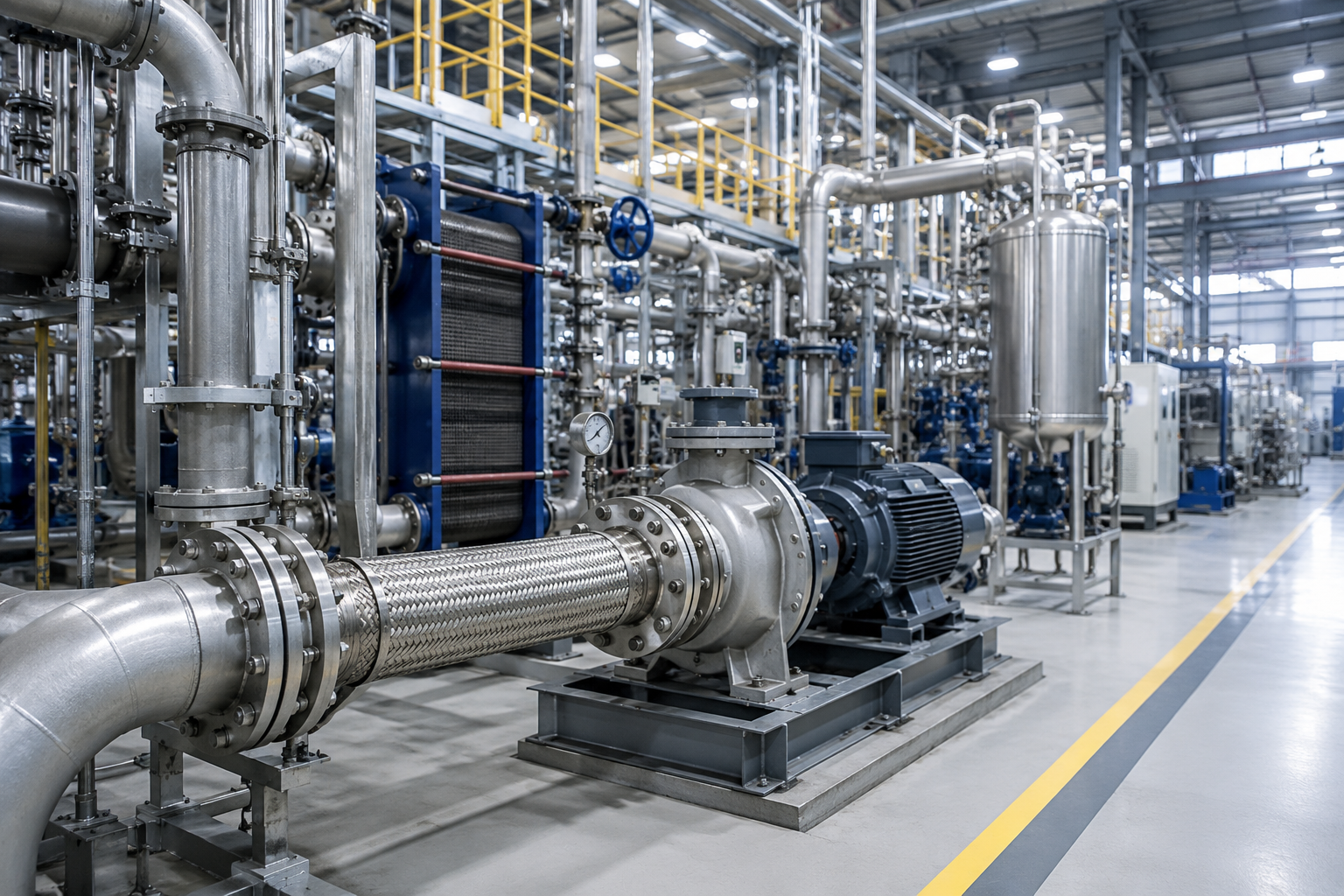

Expansion joints and flexible connections for process equipment, utility piping and manufacturing systems.

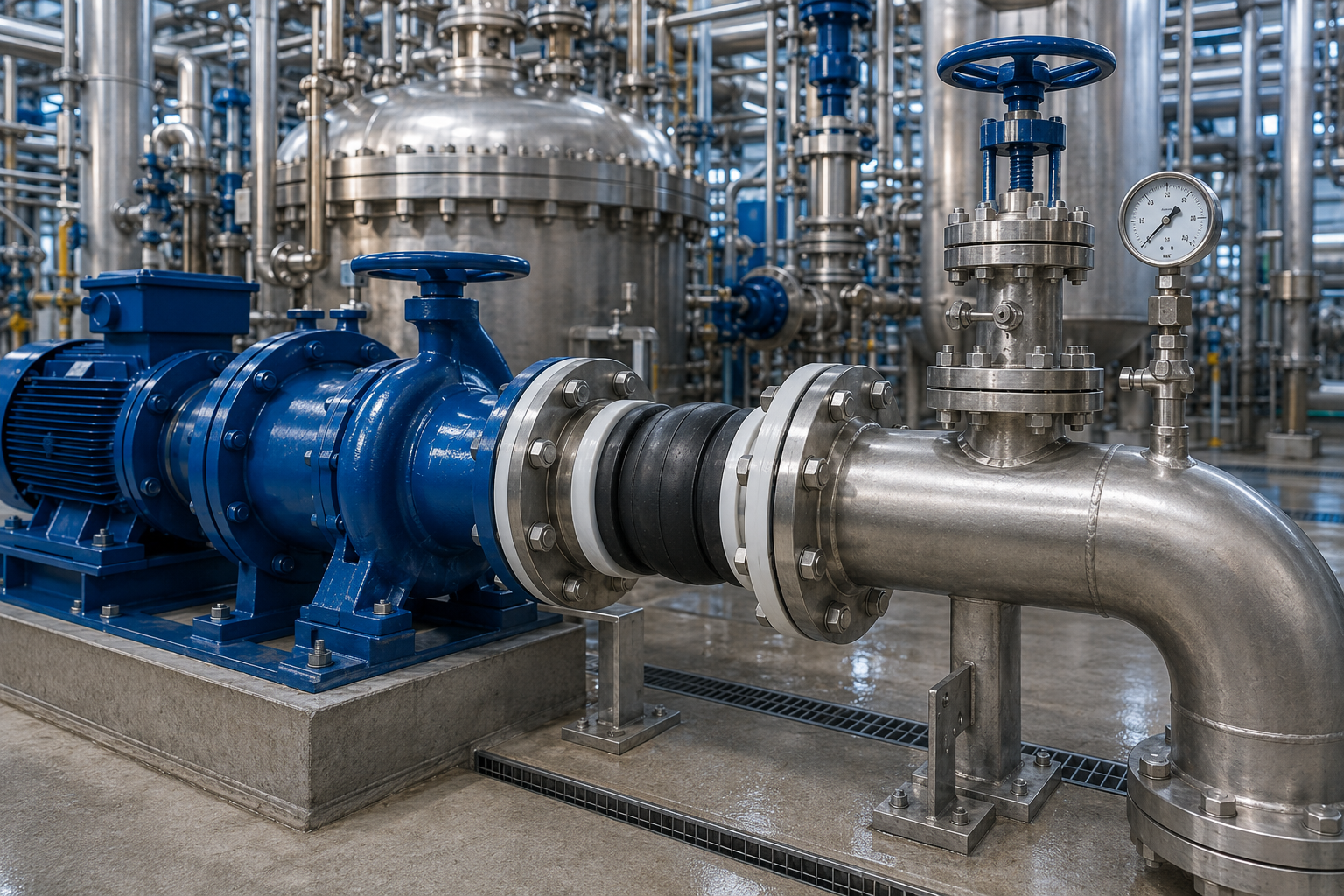

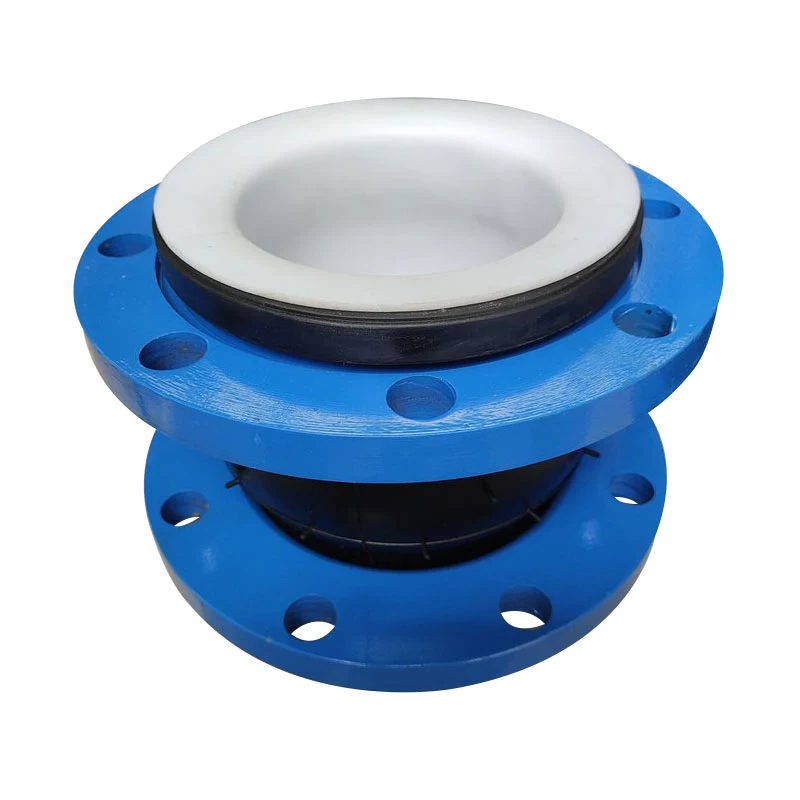

PTFE-lined rubber expansion joints and flexible connections for corrosive chemical process piping and petrochemical systems.
Product Range
Selected flexible piping connection products for vibration control, thermal movement, installation adjustment and corrosive-media service across water, HVAC and industrial piping systems.
Applications
Typical installation points for expansion joints, dismantling joints, bellows and flexible metal hoses in industrial piping systems.

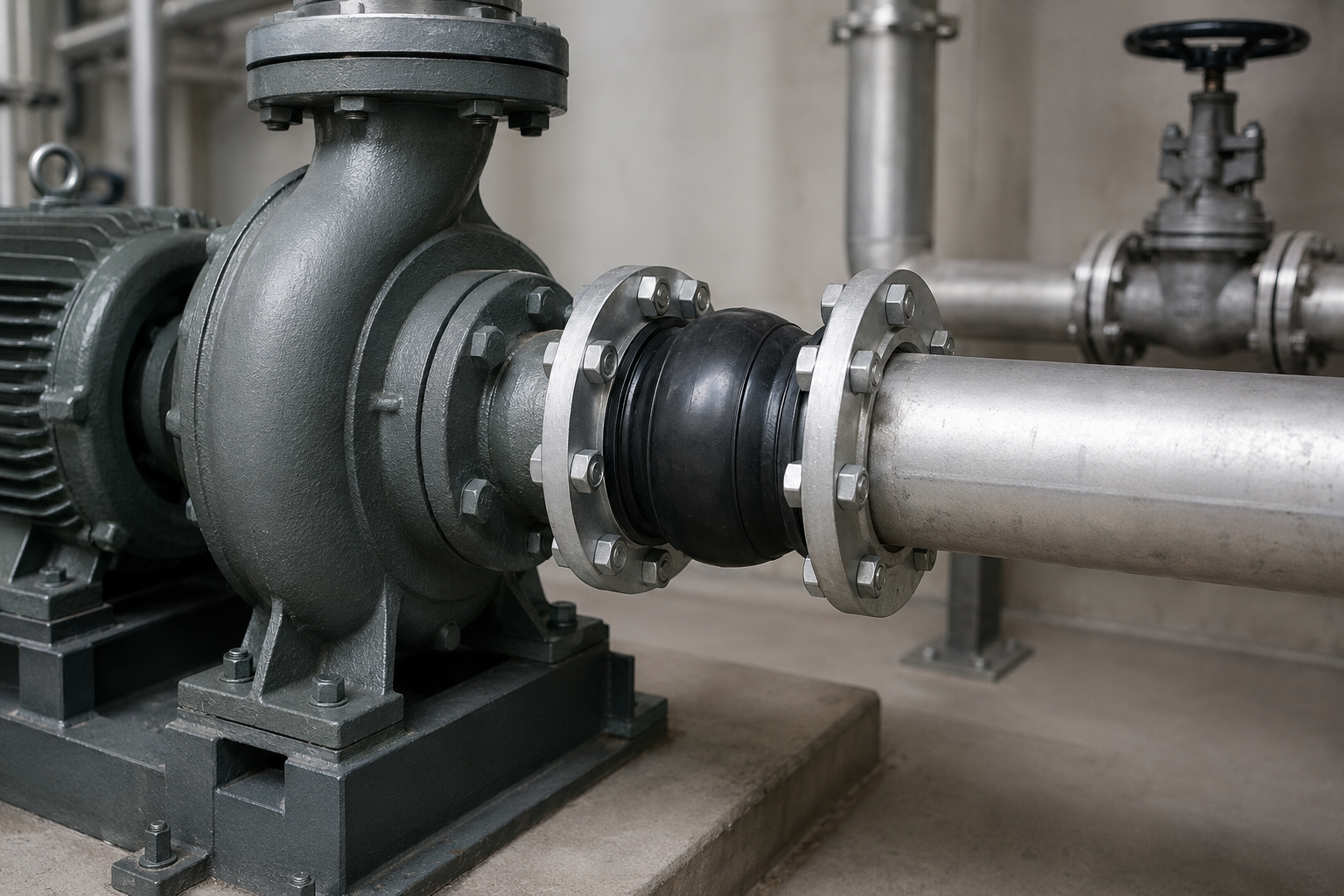

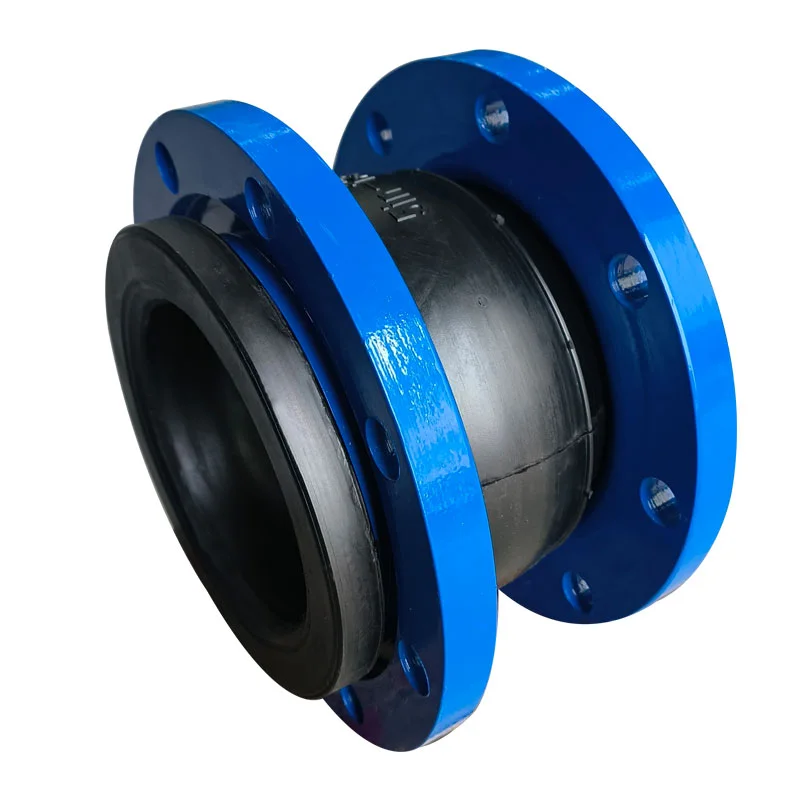

Rubber expansion joints provide flexible connections at pump suction and discharge piping.

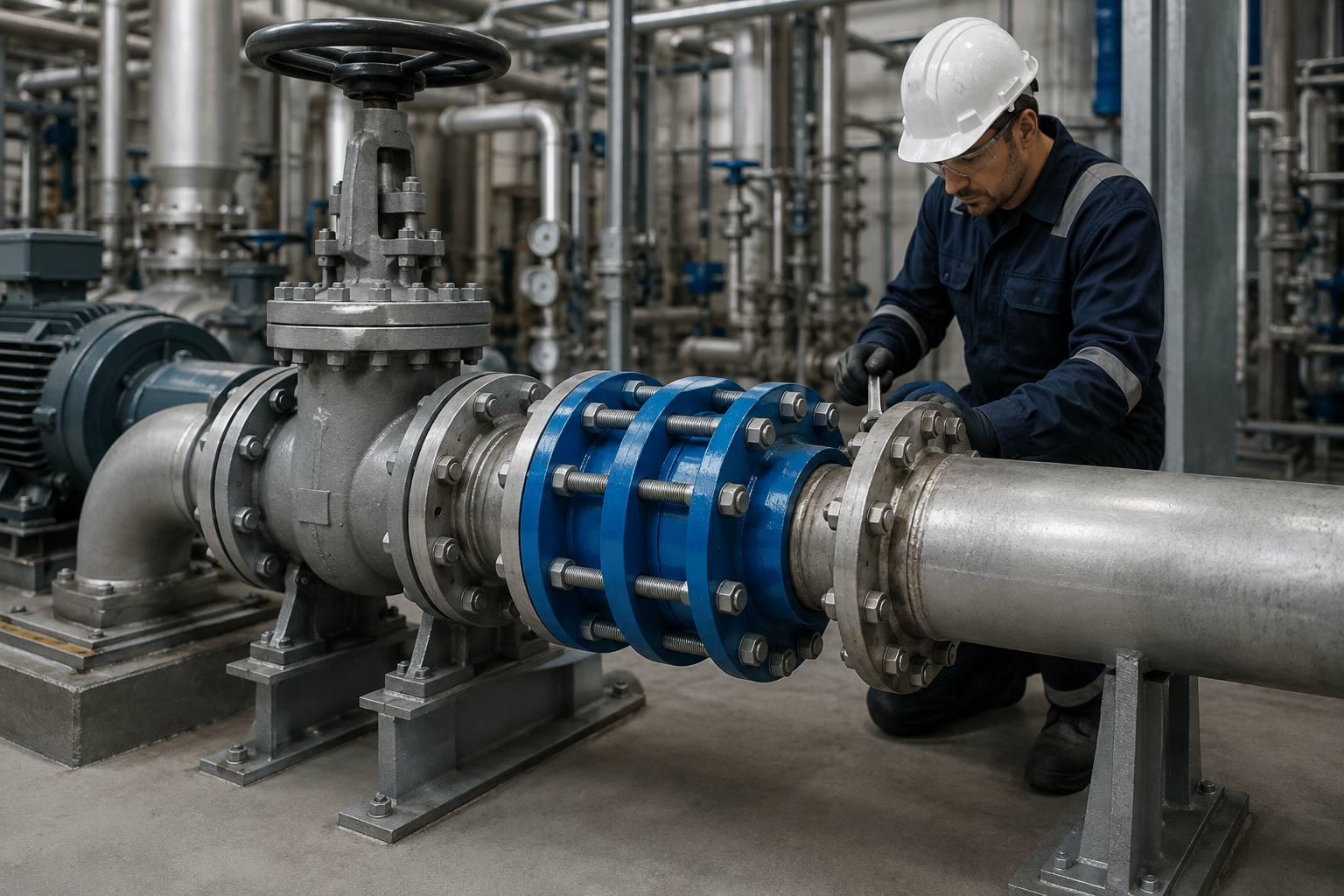

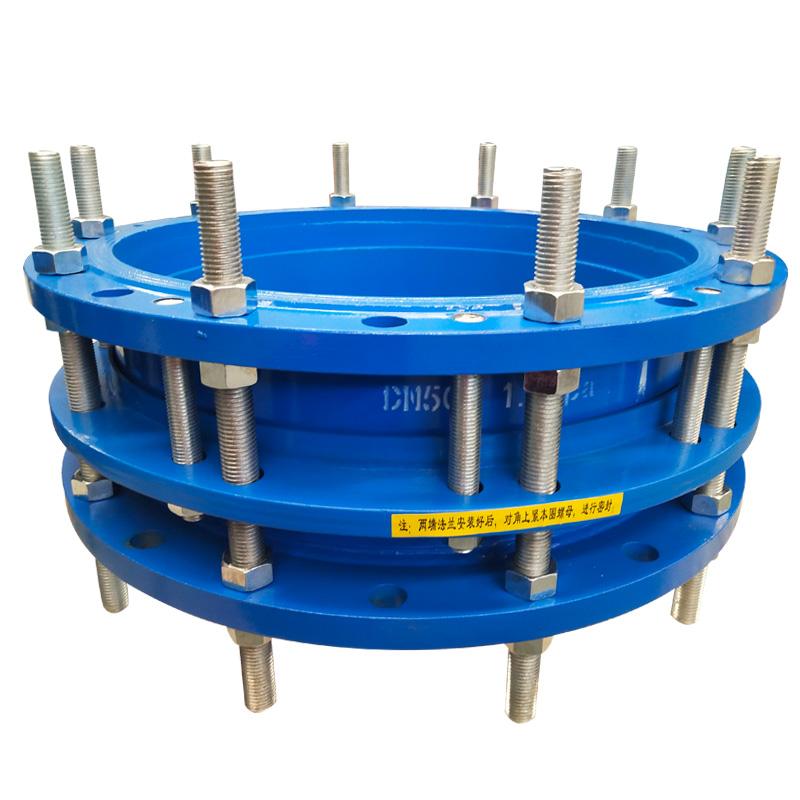

Dismantling joints provide installation clearance beside valves, meters and pipeline equipment.

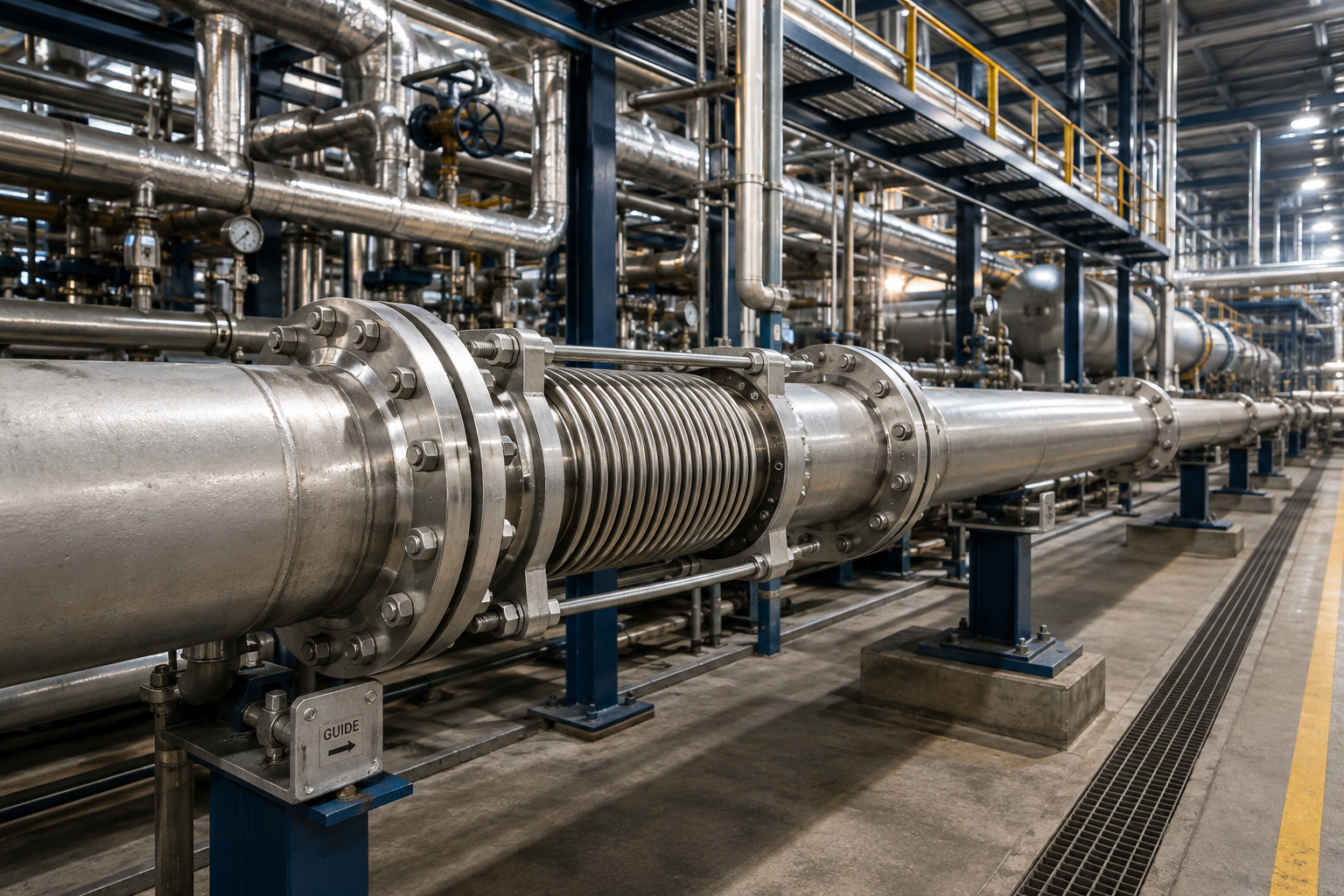

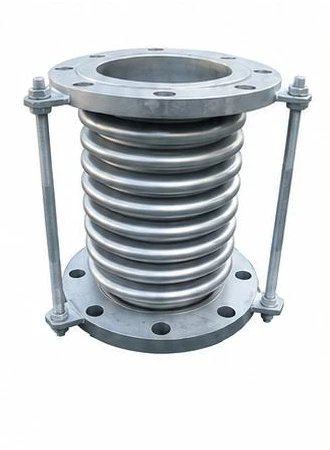

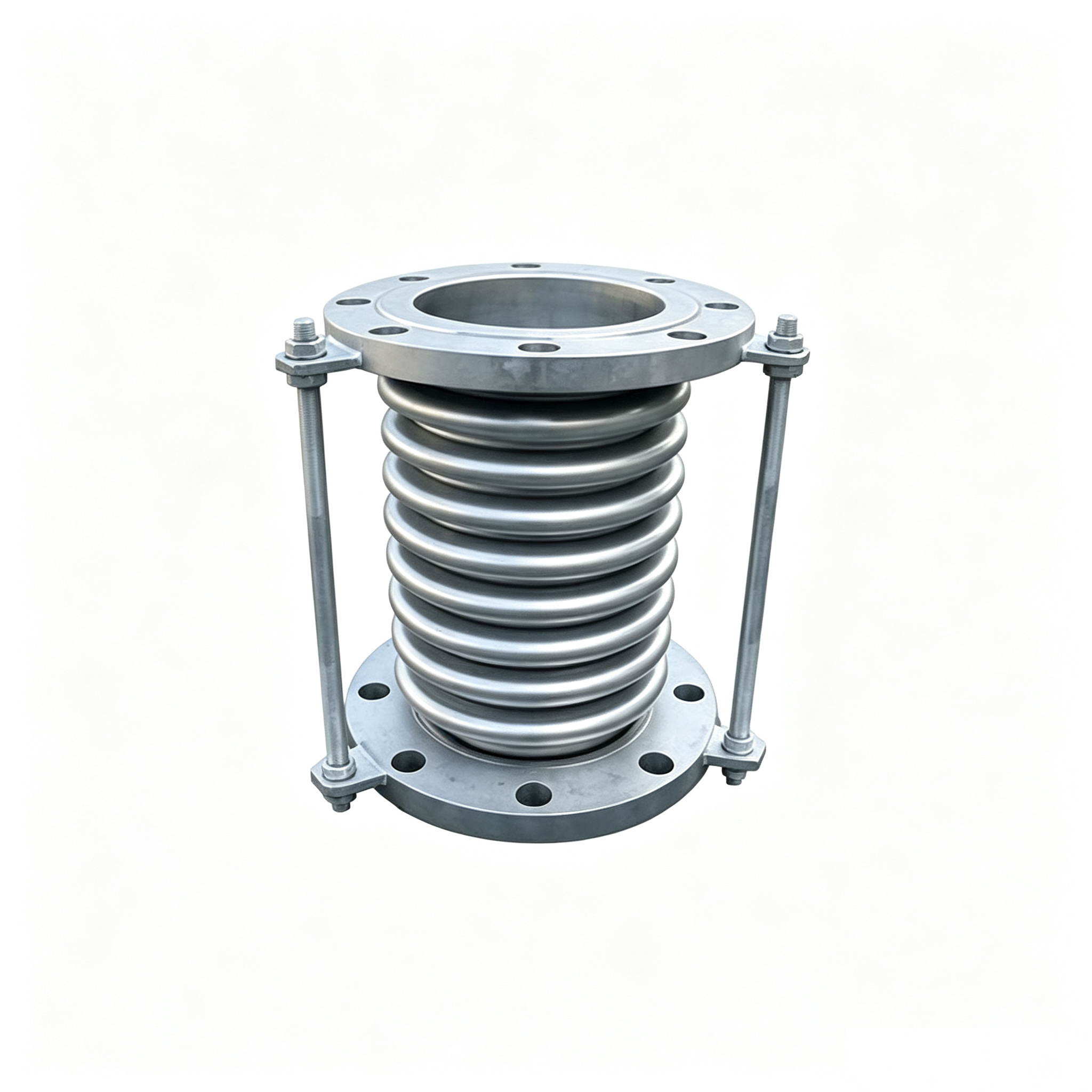

Axial bellows compensators absorb thermal expansion in straight industrial piping runs.

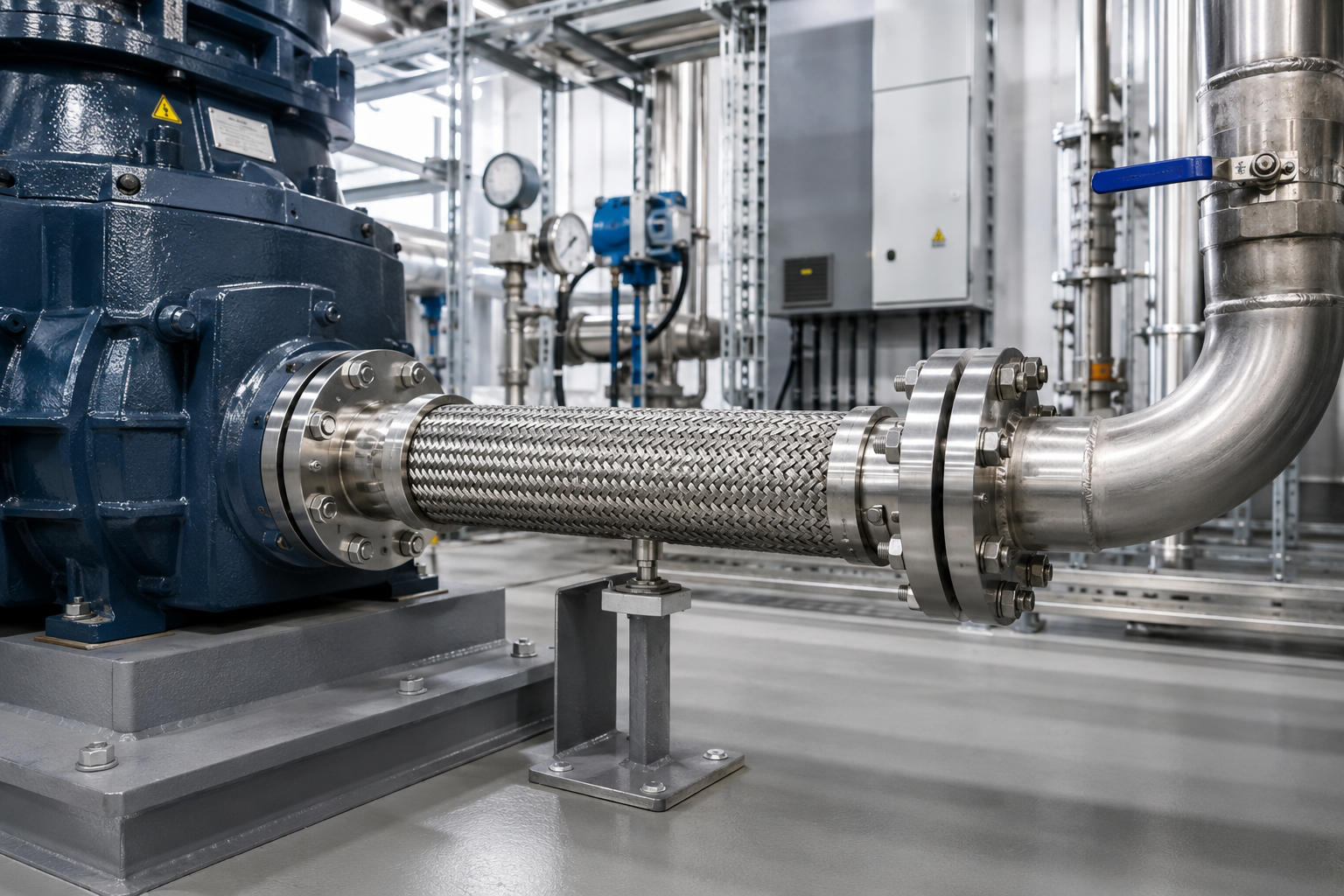

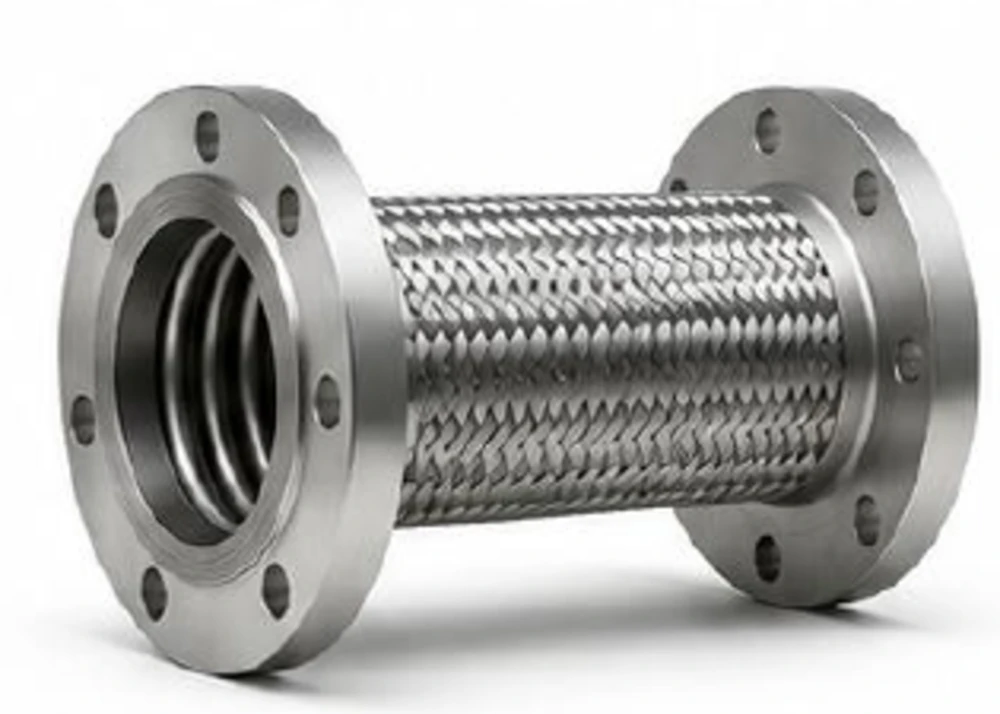

Flexible metal hoses connect equipment to piping where movement and installation flexibility are required.
Case Studies
Selected field installations and project supplies demonstrating Mingchao products in real piping systems.
FIELD INSTALLATION

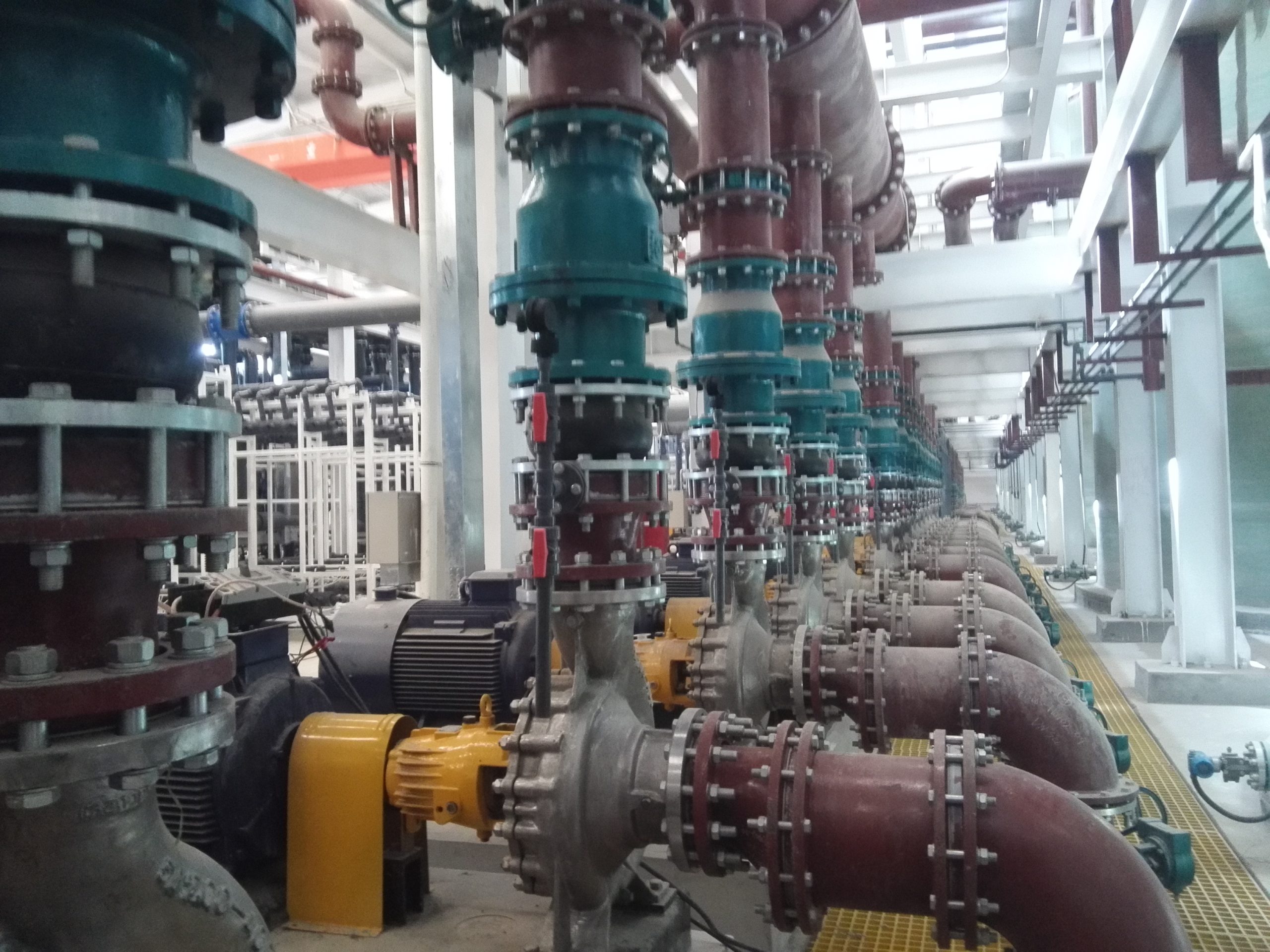

Rubber expansion joints installed at multiple pump connections in a real mechanical-room piping system.
FIELD INSTALLATION

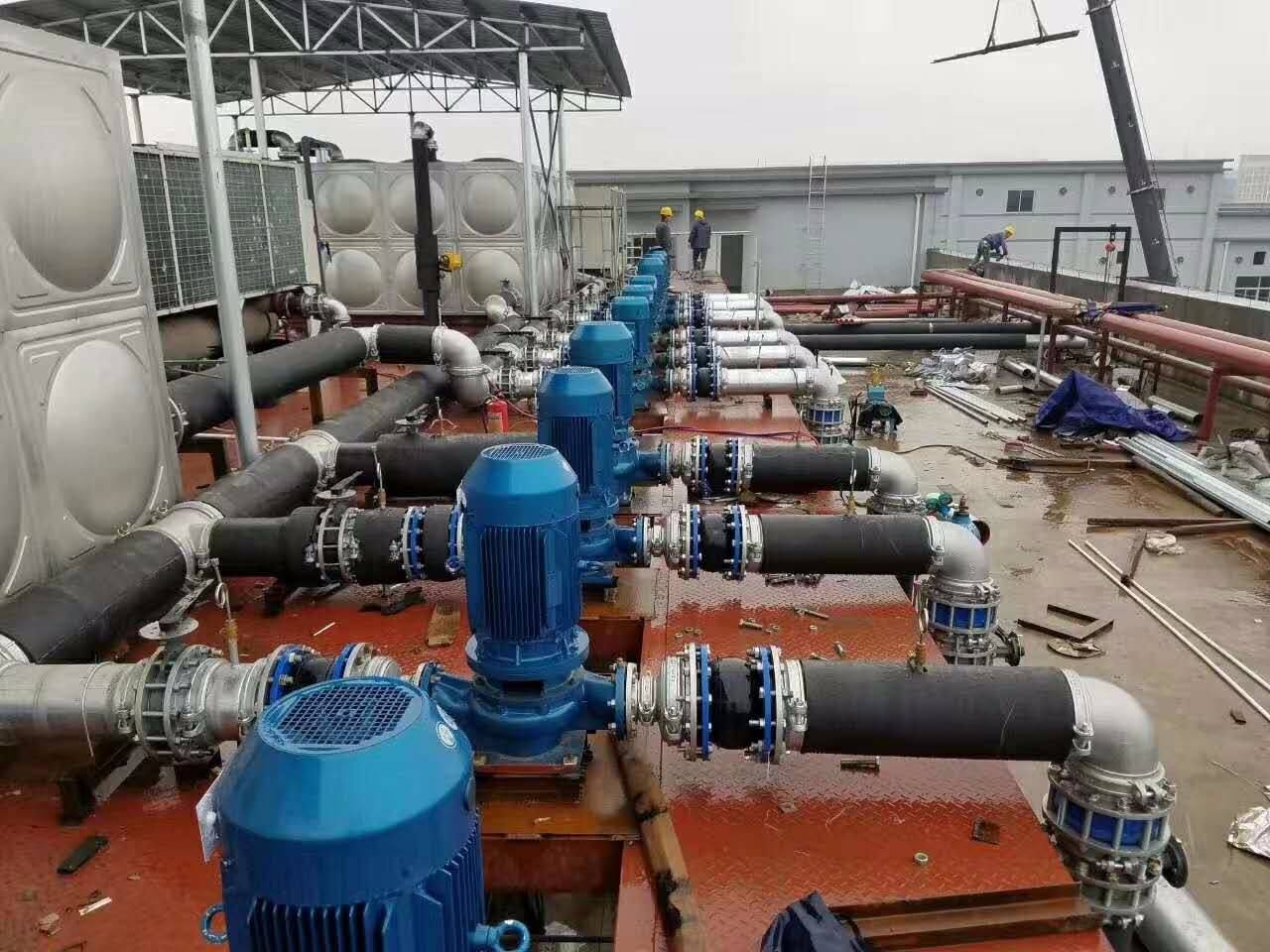

Flexible joints installed across multiple pump lines to accommodate vibration and piping movement.
FIELD INSTALLATION

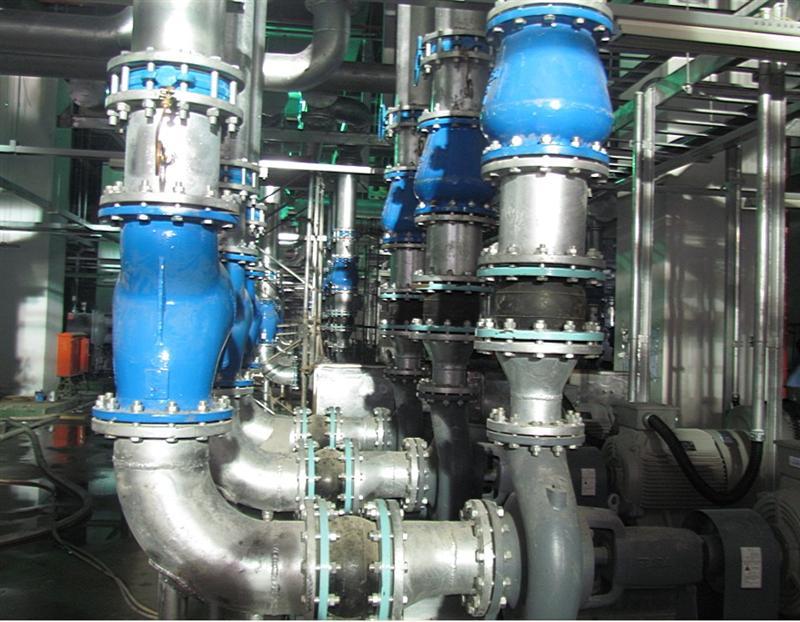

Rubber expansion joints installed adjacent to valves and equipment in an industrial piping system.
PROJECT SUPPLY

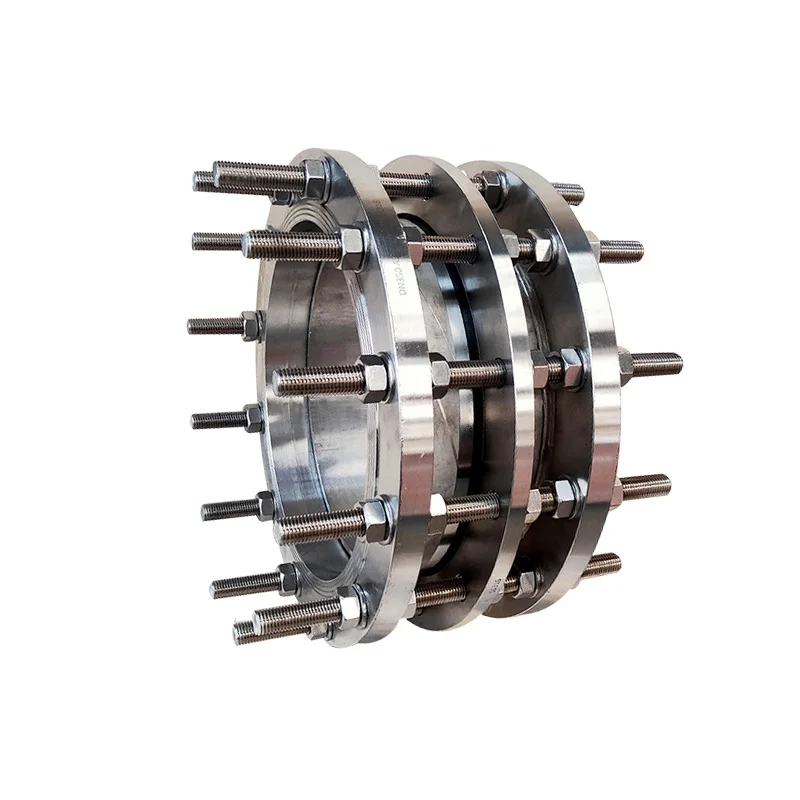

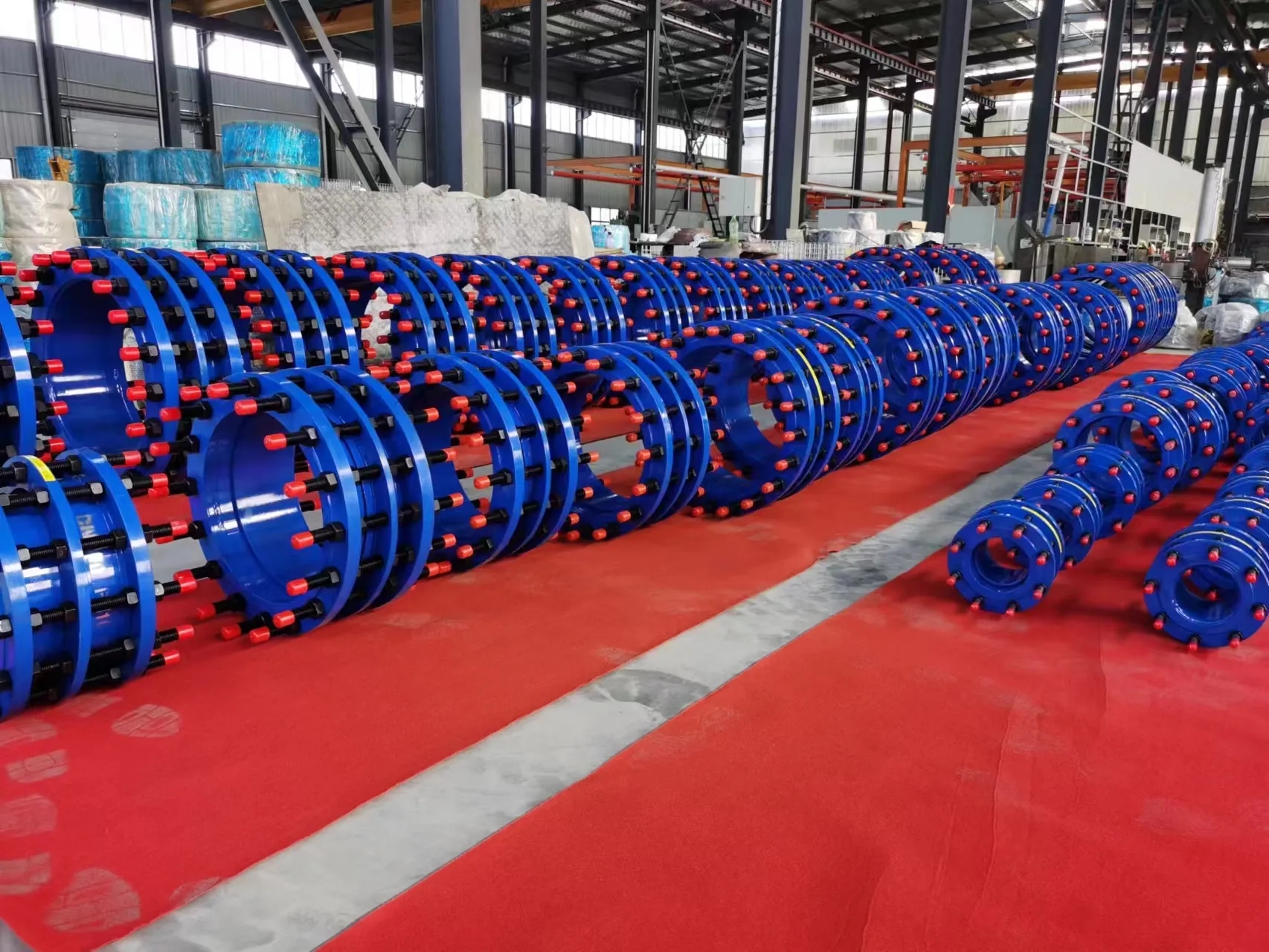

Double-flange dismantling joints prepared in multiple sizes for project delivery.
Available Standards
Verified flange dimensions and stock availability for GB PN6 / PN10 / PN16, JIS 5K / 10K and ANSI 150LB rubber expansion joints. Standard tables cover DN25–DN300, with larger sizes and custom dimensions available for project requirements.
In-stock rubber expansion joint dimensions for GB PN6, PN10 and PN16 flange systems.
View GB Dimensions →In-stock JIS 5K and JIS 10K rubber expansion joints with verified flange and drilling dimensions.
View JIS Dimensions →ANSI 150LB rubber expansion joints with verified flange drilling and dimensional data for export projects.
View ANSI Dimensions →Listed stock sizes from DN25 to DN300, with larger sizes, custom lengths and flange drilling available for project requirements.
View Size Availability →Technical Information
Engineering resources for product selection, installation, material compatibility and piping movement design across expansion joints and flexible piping connections.
Compare rubber expansion joints, dismantling joints, metal bellows and flexible metal hoses by application, movement and connection requirements.
Practical guidance for alignment, pipe support, bolt tightening, control rods, inspection and maintenance.
Guidance on rubber and lining materials for water, oil, chemical and industrial piping media.
Understand axial, lateral and angular movement, pressure thrust, anchors, guides and flexible connection requirements.
Need a technical quotation?
Send product type, size, pressure, flange standard, medium, quantity or drawing.
